Täby Pressen, Typ 70, An oil seed press machine.

www.oilpress.com


Videos on: www.youtube.com Search: "Skeppsta Maskin AB"

Upgrade to Double press.

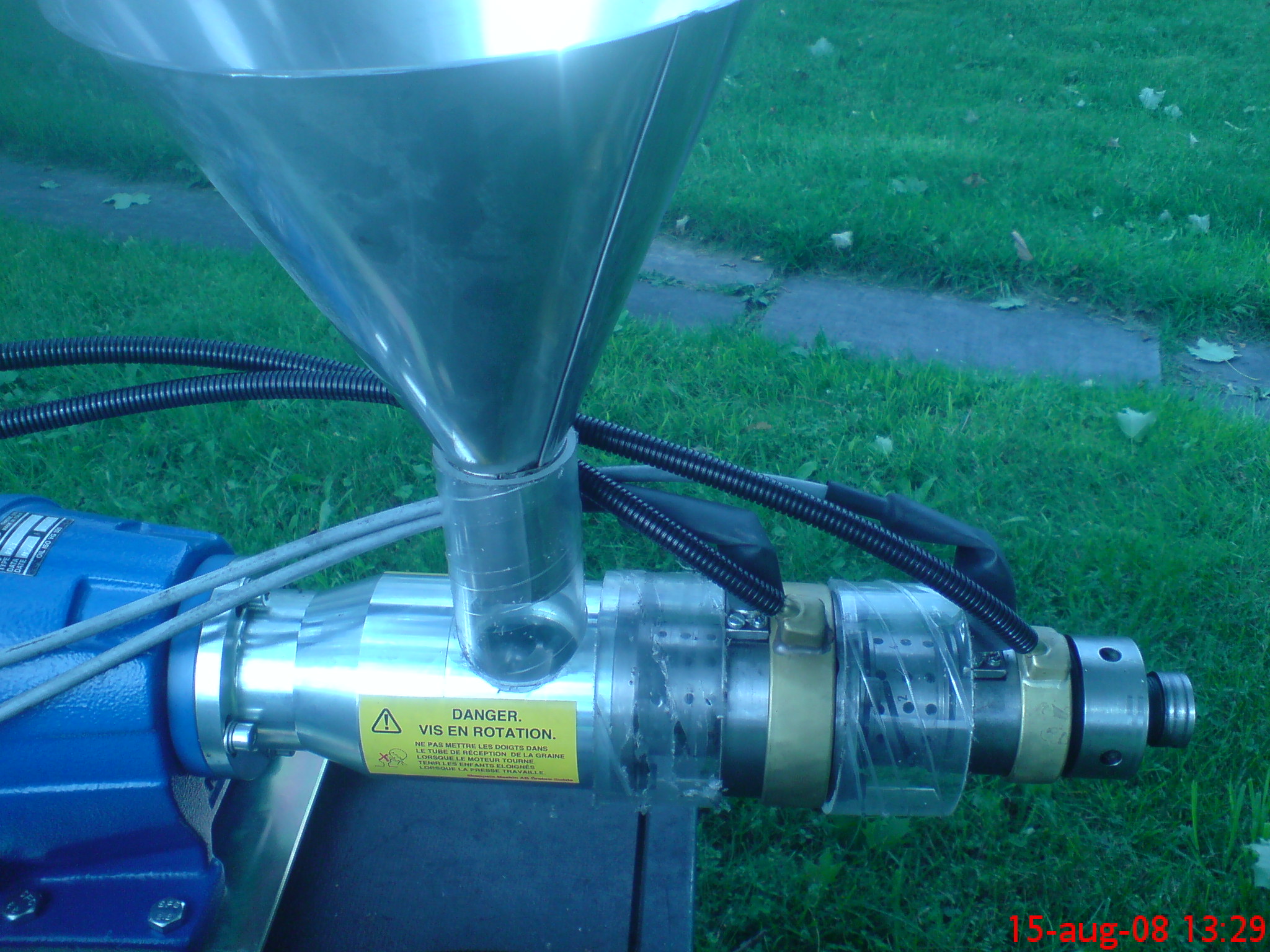

Type 40C-2 Double press zones. With AC Variable Speed Drive
               Press zone2     Press zone1 Converter to change rev. on press screw
220-240 Supply Voltage 1 Phase 50/60 Hz
Capacity litres: 4 - 9 litres / hour. Length:1065 mm. Width: 250 mm.
Height without filling hopper: 270 mm. Weight press: 50 kg.
Weight electric cabinet : 21 kg
2 pcs.,of warm collar 24 volt Auto stop overload. Hours run, kWh, Hz, Amp meters.
About 8% more output than single oilpress
Double press extract more oil from the seed. up to 38% But you can also press with only
1 zone if you wish to get lower utput. Double press extract more oil from the see´d. But you can also only press zone 1 only also You can take away zone 2 if you wish to press with lower utput.
          Type 40C-2 Price: Call my dealers for pricing
   Spare part Wears part : Press crew : Price 2 700:-SEK      Press tube : Price 2 700:-SEK

Only upgrade with double kit if you already have an Oilpress Type 40A
(Converter Not in the kit price Call my dealers for pricing . Price Call my dealers for pricing

            Type 55-2 Double press zones. With AC Variable Speed Drive
Press zone2     Press zone1               Converter to change rev. on press screw
220-240 Supply Voltage 1 Phase 50/60 Hz
Capacity litres: 6- 13 litres / hour. Length: 1161 mm. Width;350 mm.
Height without filling hopper: 300 mm. Weight press: 70 kg.
Weight electric cabinet: 27 kg.
2 pcs.,of warm collar 230 volt Auto stop overload. Hours run, Hz, Amp meters
Reversible 180 degree screw top both press zones for cheap wear spare parts.
Double press extract more oil from the seed. up to 38% and 8% more output than single oilpress
Spare part Wears part : Press reversible part screw zone 1 and zone 2,   2 200:- SEK
Double press extract more oil from the seed. But you can also press with 1 zone if you wish to get lower utput.
Type 55-2 Price: Call my dealers for pricing

Only upgrade with double kit if you already have an Oilpress Type 55
With Temperature Regulator Price: Call my dealers for pricing

Type 70-2 Double press zones. With AC Variable Speed Drive

Press zone2     Press zone1
    Converter to change rev. on press screw
   220-240 Supply Voltage 1 Phase 50/60 Hz
   Capacity litres: 9 - 16 litres / hour. Length: 1346 mm. Width: 350 mm.
   Height without filling hopper: 310 mm. Weight press: 101 kg.
   Weight electric cabinet : 27 kg.
    2 pcs.,of warm collar 230 volt Auto stop overload. Hours run, Hz, Amp meters
   Reversible 180 degree screw top both press zones for cheap wear spare parts.
   Double press extract more oil from the seed. up to 38% and 8% more output than single oilpress
   Spare part Wears part : Press reversible part screw zone 1 and zone 2, 2 550:- SEK
Double press extract more oil from the seed. But you can also press with 1 zone if you wish to get lower utput.
Type 70-2. Price Call my dealers for pricing

Only upgrade with double kit if you already have an Oilpress Type 70
With Temperature Regulator. Call my dealers for pricing

Type 90-2 Double press zones. With AC Variable Speed Drive

Press zone2     Press zone1                Converter to change rev. on press screw
   380-480 Supply Voltage 3 Phase 50/60 Hz
   Capacity litres: 18 - 30 litres / hour. Length: 1566 mm- Width;400 mm.
   Height without filling hopper: 370 mm. Weight press 170 kg.
   Weight electric cabinet: 27 kg.
    2 pcs.,of warm collar 230 volt Auto stop overload. Hours run, Hz, Amp meters
   Reversible 180 degree screw top both press zones for cheap wear spare parts.
   Double press extract more oil from the seed. up to 38% and 8% more output than single oilpress
   Spare part Wears part : Press reversible part screw zone 1 and zone 2           3 300:- SEK
Double press extract more oil from the seed. But you can also press with 1 zone if you wish to get lower utput.
Type 90-2 Price Call my dealers for pricing

Only upgrade with double kit if you already have an Oilpress Type 90
With Temperature Regulator. Call my dealers for pricing

PRICE OILPRESS STD.r
Type 20      Call my dealers for pricing                           Type 40A Call my dealers for pricing
Type 40C Call my dealers for pricing                              Type 55    Call my dealers for pricing
Type 70    Call my dealers for pricing                              Type 90    Call my dealers for pricing

Price Seed cake guard Price USD Pris Frökakevakt, Call my dealers for pricing
